RING LOCK SCAFFOLD

Direct Scaffold Supply Ring Lock Scaffolding Systems are built to be the most reliable and efficient scaffolding available. Safe and convenient, our Ring Lock Scaffolding line includes multiple ledgers, clamps, guardrails, connectors, stair stringers and steps and adapters. So whether you are in the market for a complete scaffolding system, or just need accessories that are compatible with your current ring lock scaffolding system, Direct Scaffold Supply is here to help with your next project.

Download Catalog

Ring lock scaffolding is a type of modular scaffolding system that uses vertical standards with a series of rings to connect horizontal ledgers and diagonal braces.

DSS RING LOCK SCAFFOLD SYSTEM

This system uses vertical standards with a series of rings to connect horizontal ledgers and diagonal braces. Ring lock  system scaffolding is easy to assemble and disassemble, making it a popular choice for projects that require frequent adjustments.

TUBE SPECIFICATIONS RING LOCK

Ring lock tubes are designed to provide superior strength, durability, and resistance to deformation, bending, and corrosion. The vertical tubes are made from high-strength steel and are designed to meet specific size and strength requirements, depending on the required load capacity. The rings are welded onto the tubes at regular intervals to provide a secure and stable connection.

The ledgers and diagonal braces are usually made of single tubes, and the tube ends are designed with a spigot and socket joint to allow for easy and quick assembly and disassembly of the scaffolding system.

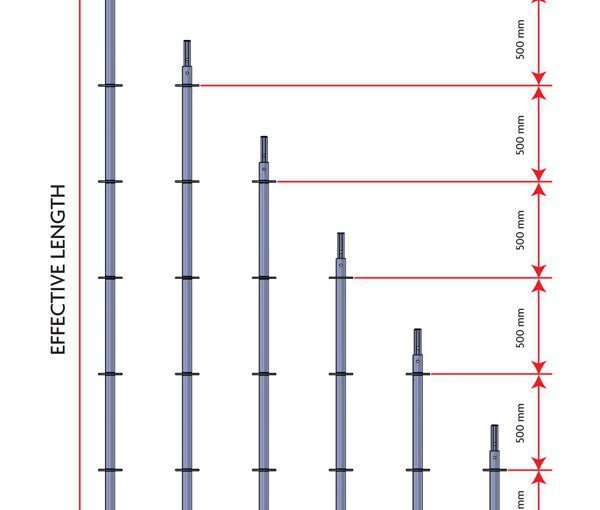

RING LOCK VERTICALS

The Ring lock Scaffold verticals, also known as standards or uprights, are the vertical metal tubes that form the backbone of the Ring Lock scaffolding system.

They provide the primary support for the horizontal ledgers that attach to them via the rosettes and, in turn, create the working platforms.

LEDGERS

The ring lock ledgers are designed to be assembled in a modular manner using the rosette rings welded onto the vertical standards of the scaffolding. The ledgers are connected to the verticals at regular intervals using the rosette rings, which provide a secure and stable connection. The  ledgers ring lock are known for their high load-bearing capacity, stability, and safety, making them a popular choice for a wide range of construction projects

DOUBLE LEDGERS

Ring Lock Double Ledgers are horizontal components that are used when the load bearing capacity of a standard Ring Lock Horizontal is not enough, or the bearer’s required span is longer that 1.57 meters. The double ledgers are available in various lengths, ranging from 1.57 m to 3 m

The double ledgers are usually placed at the top and bottom of the scaffolding system, where they are used to support the scaffolding planks and distribute the weight of the construction materials evenly across the structure.

LATTICE GIRDER

Ring lock scaffolding lattice girders are horizontal components that are used to span across large gaps or openings in the scaffolding system. The lattice girders are available in various lengths, ranging from 2.5m to 4m, depending on the required span. They are connected to the verticals at regular intervals using the rosette rings, which provide a secure and stable connection

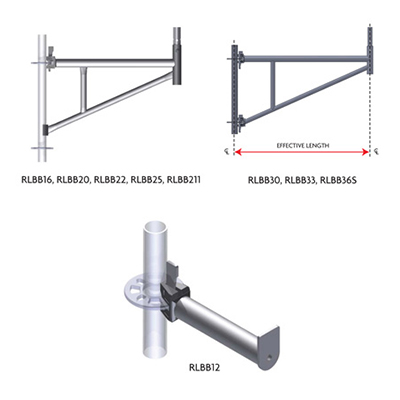

BOARD BRACKET RING LOCK

Ring lock board brackets provide a secure and stable platform for workers to stand on while they are working at height. They are easy to install and can be used at any point where there’s a ring on the verticals to suit the construction requirements.

The board brackets are designed to be compatible with the ring lock scaffolding system, allowing for easy integration and setup. They are known for their high load-bearing capacity, stability, and safety, making them a popular choice for a wide range of construction projects.

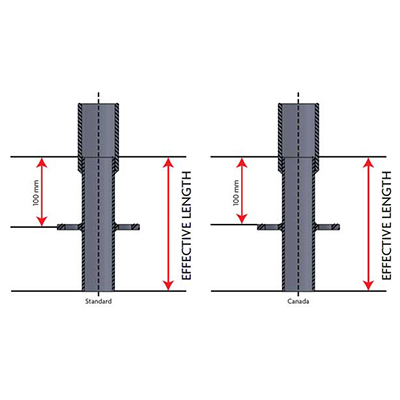

STARTER COLLAR

Ring lock starter collars are components that are used to attach the base plates or jacks to the vertical standards of the ring lock scaffolding system. They are typically made of high-strength steel and are designed to be compatible with the ring lock scaffolding system.

They are known for their high load-bearing capacity, stability, and safety, making them a popular choice for a wide range of construction projects.

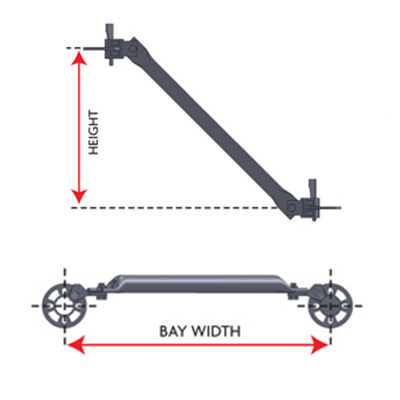

VERTICAL DIAGONAL

Ring lock vertical diagonal braces are installed diagonally between the horizontal ledgers and the vertical standards of the scaffolding system. They form an “X” shape, which helps the structure resist lateral loads and prevent the scaffolding from wobbling or swaying. The diagonal braces are designed to be compatible with the ring lock scaffolding system, allowing for easy integration and setup. They are known for their high load-bearing capacity, stability, and safety, making them a popular choice for a wide range of construction projects

GUARDRAIL POSTS

Ring lock guardrail posts are components that are used to create a safety barrier around the perimeter of the ring lock scaffolding system

The Ring lock guardrail posts are installed vertically on the horizontal ledgers between the vertical standards of the scaffolding system. They are used to support the guardrails and prevent workers from falling off the scaffolding.

SUSPENDED CONNECTOR

DSS  Ring lock Suspended connectors are installed vertically between two vertical standards of the scaffolding system. They are used to support the suspended scaffold platform, which is typically made of steel planks or aluminum panels and should always be used in pairs. The suspended connectors are designed to be compatible with the ring lock scaffolding system, allowing for easy integration and setup

Our Ring Lock Suspended Connectors are fully compatible with other leading ring lock systems around the world.

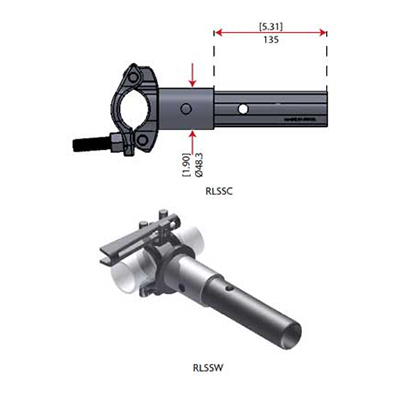

SUPPORT SPIGOT CLAMPS

DSS Support spigot clamps are used to add verticle standards at the midspan of a bay on top of a ledger, truss, lattice girder etc. They are typically installed where a standard leg cannot reach the ground, for example, when the scaffold needs to clear an entrance to a car garage.

The support spigot clamps are designed to be compatible with the ring lock scaffolding system, allowing for easy integration and setup. They are known for their high load-bearing capacity, stability, and safety, making them a popular choice for a wide range of construction projects.

Our Ring Lock Stair Steps are fully compatible with other leading ring lock systems around the world.

STAIR STRINGERS

Stair stringers are installed horizontally between two vertical standards of the scaffolding system to support the steps of the staircase. They have pre-installed rivets at regular intervals for attaching the steps. The stair stringers are designed to be compatible with the ring lock scaffolding system, allowing for easy integration and setup.

Our Ring Lock Stair Steps are fully compatible with other leading ring lock systems around the world.

STEPS

Scaffold steps are components used to provide safe and easy access to different levels of the ring lock scaffolding system. They are made of high-strength steel and are designed to be compatible with the ring lock scaffolding system. Steps are installed horizontally between two stair stringers of the scaffolding system to create a safe and stable walking surface. They have anti-slip treads and are designed to support heavy loads, making them suitable for workers to move up and down the scaffolding structure with ease.

Our Ring Lock Stair Steps are fully compatible with other leading ring lock systems around the world.

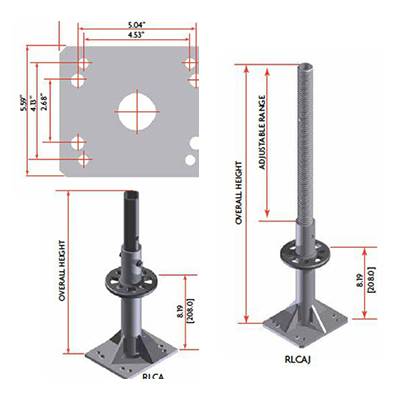

RING LOCK CASTER ADAPTER

Ring lock caster adapters are components that are used to convert the ring lock scaffolding system into a mobile unit by adding casters to the bottom of the vertical standards. They are made of high-strength steel and are designed to be compatible with the ring lock scaffolding system. Ring lock caster adapters are installed at the bottom of the vertical standards of the scaffolding system to provide a secure and stable connection for the casters. They are designed to accommodate standard 8-inch casters, allowing the scaffolding system to be easily moved from one location to another. The ring lock caster adapters are designed to be compatible with the ring lock scaffolding system, allowing for easy integration and setup.

RING SYSTEM ACCESSORY CLAMPS

Ring system accessory clamps are commonly used in scaffolding systems. They are used to secure various accessories to scaffold tubes, such as ladders, scaffold boards, and guardrails.

Ring system accessory clamps consist of a circular ring that fits around the scaffold tube, and a bolt that passes through the ring and tightens onto the tube. The bolt is typically equipped with a wing nut or other type of easy-to-use fastener for quick and easy installation and removal.

INTERMEDIATE TRANSOM

This consists of a horizontal steel tube with hooks which are designed to fit onto the horizontal standards of the scaffolding system.

The intermediate transom ring lock scaffold is installed between two horizontals at the mid-span of a bay to provide support for the planks in case there is a need to have a void at some point in the bay.

Our Ring Lock Intermediate Transom are fully compatible with other leading ring lock systems around the world.
