Name: Ring Lock Braces - Direct Scaffold Supply | DSS Scaffolding, Formwork, Shoring
SKU: RLVDxxx
Availability: InStock

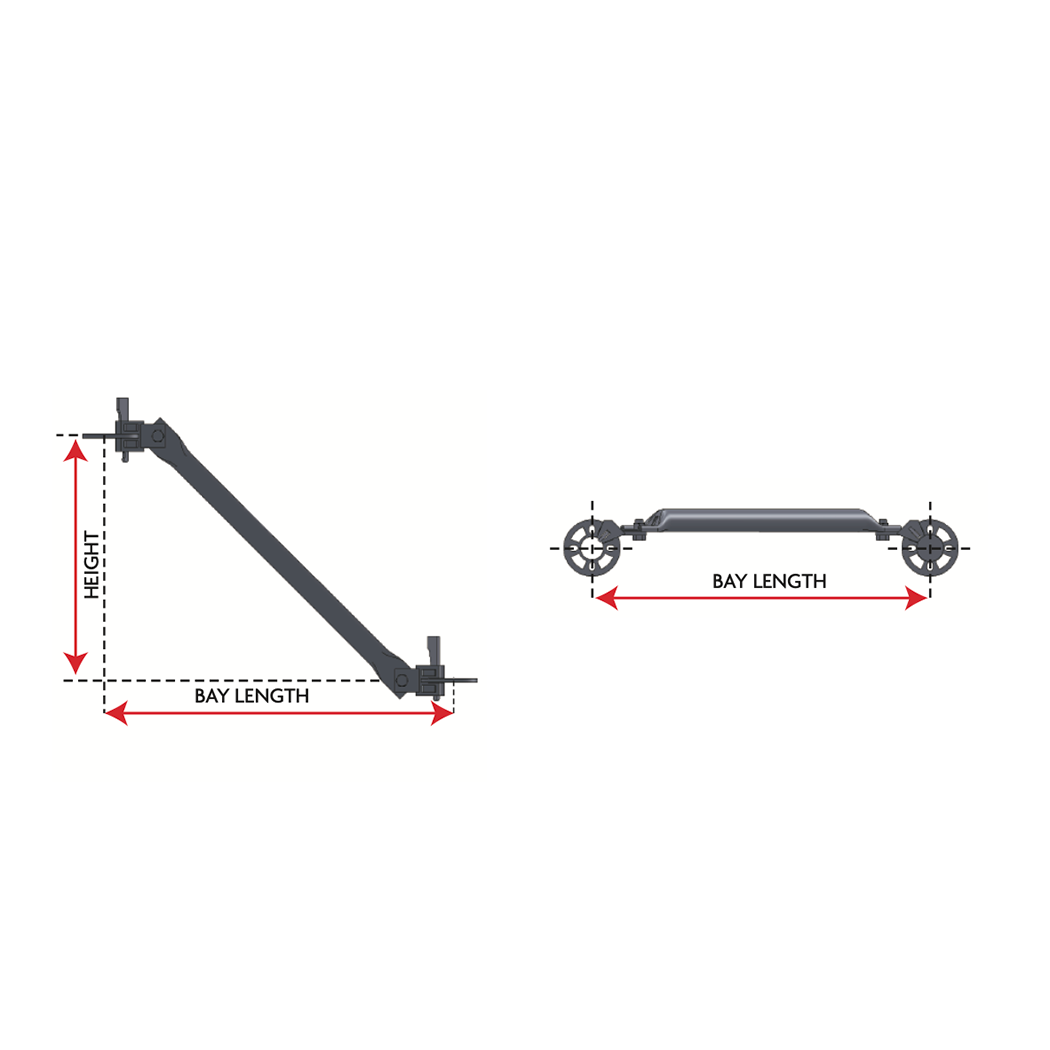

Ring Lock Braces

Product Code	Description	Inches	Meters	Inches	Meters	Lb	Kg
RLVD30	3′ Vert. Diag.	35.98	0.914	78.74	2.0	17.4	7.90
RLVD36S	3′-6″ Vert. Diag.	41.93	1.065	78.74	2.0	18.1	8.21
RLVD40	4′ Vert. Diag.	48.03	1.220	78.74	2.0	19.0	8.61
RLVD50	5′ Vert. Diag.	60.00	1.524	78.74	2.0	20.4	9.25
RLVD60	6′ Vert. Diag.	70.87	1.829	78.74	2.0	20.9	9.47
RLVD70	7′ Vert. Diag.	83.86	2.130	78.74	2.0	21.6	9.80
RLVD80x1	8′ Vert. Diag.	96.06	2.440	78.74	2.0	24.1	10.93
RLVD80x15	8′ Vert. Diag.	96.06	2.440	78.74	2.0	25.0	11.34
RLVD90	9′ Vert. Diag.	106.96	2.72	78.74	2.0	26.4	11.96
RLVD100	10′ Vert. Diag.	120.12	3.051	78.74	2.0	28.0	12.70

Product Code	Description	Length	Height	Lb	Kg
RLVD36	3′-6″ Vert. Diag.	1.088	2.0	15.5	7.02
RLVD43	4′-3″ Vert. Diag.	1.288	2.0	18.0	8.16
RLVD410	4′-10″ Vert. Diag.	1.484	2.0	18.4	8.35
RLVD52	5′-2″ Vert. Diag.	1.572	2.0	19.2	8.71
RLVD69	6′-9″ Vert. Diag.	2.072	2.0	20.5	9.30
RLVD70	7′ Vert. Diag.	2.130	2.0	21.8	9.87
RLVD86	8′-6″ Vert. Diag.	2.592	2.0	22.9	10.39
RLVD100	10′ Vert. Diag.	3.051	2.0	26.8	12.17

Product Code	Description	Width Inches	Width Meters	Height Inches	Height Meters	Lb	Kg
RLVD36S	3′-6″ Vert. Diag.	41.93	1.065	78.74	2.0	18.1	8.22
RLVD39	3′-9″ Vert. Diag.	45.28	1.150	78.74	2.0	18.2	8.25
RLVD52	5′-2″ Vert. Diag.	61.89	1.572	78.74	2.0	19.2	8.73
RLVD70	7′ Vert. Diag.	83.86	2.130	78.74	2.0	21.8	9.87
RLVD100	10′ Vert. Diag.	120.12	3.051	78.74	2.0	26.8	12.17

(713) 673-7701

Ring Lock Braces
