Ring Lock Verticals

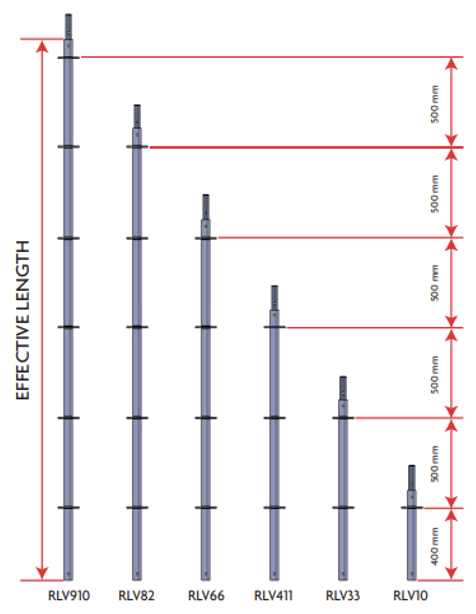

Ring Lock Verticals A picture of the different dimensions for each ring lock

Ring Lock Verticals

Product Code Description Inches Meters Lb Kg
RLV10 1 Ring Vertical W/Spigot 19.69 0.50 6.9 3.1
RLV33 2 Ring Vertical W/Spigot 39.37 1.00 12.1 5.5
RLV411 3 Ring Vertical W/Spigot 59.06 1.50 17.3 7.7
RLV66 4 Ring Vertical W/Spigot 78.74 2.00 22.3 10.1
RLV82 5 Ring Vertical W/Spigot 98.43 2.50 28.8 13.1
RLV910 6 Ring Vertical W/Spigot 118.11 3.00 33.2 15.0
