Essential Guidelines for Using Toe Boards in Construction Projects
If you’re working on a construction project, safety is your top priority. One of the most basic, but effective, safety features you’ll need are toe boards. These barriers can mean the difference between a safe worksite and a serious accident.
Let’s go over everything you need to know about using toe boards properly in your construction projects.
What are Toe Boards?

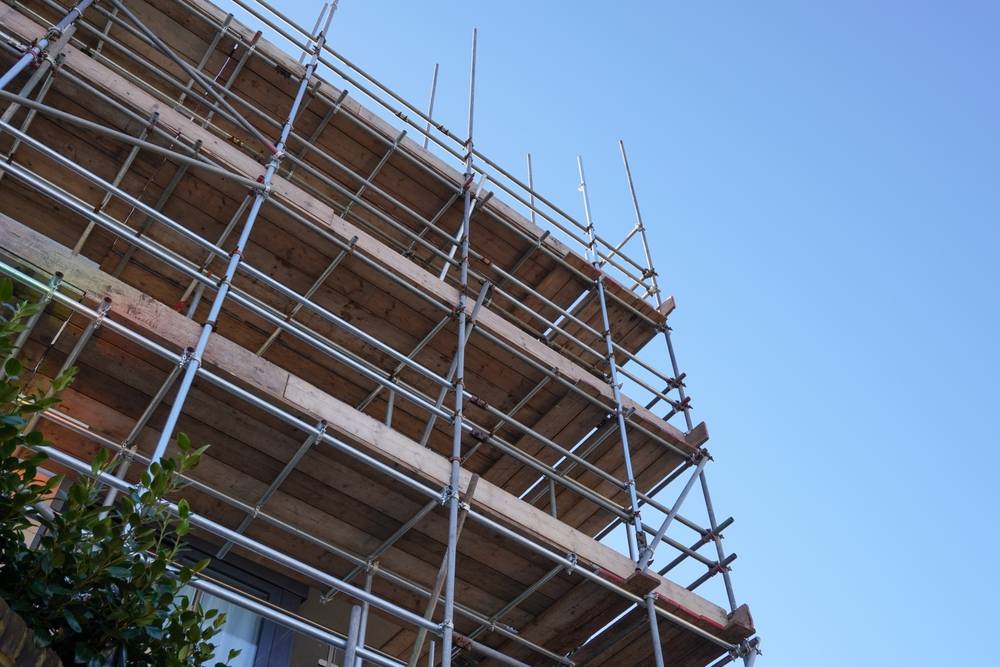

A toe board is a protective barrier that runs along the edges of elevated platforms, scaffolding, and building edges. Think of it as a safety guard that stops tools, materials, and debris from falling off elevated surfaces — and in some cases, it can even prevent workers from accidentally stepping off an edge.
You’ll often see toe boards alongside guardrails as part of a complete fall protection system. They’re typically made from sturdy materials like wood or metal, with metal being the preference for its increased durability and longer lifespan.
The Purpose of Toe Boards
The main job of toe boards is pretty straightforward: they keep things from falling and hurting people below.
When you’re working on scaffolding or elevated platforms, even small items can become dangerous projectiles if they fall. A toe board acts as that essential barrier that keeps your tools and materials where they belong — on your work surface.
But there’s more to it than just catching falling objects. Toe boards also give workers a visual and physical reminder of where edges are, which is especially helpful when you’re focused on your work and might not be actively thinking about how close you are to an edge.
They’re an integral part of any thorough fall protection system, working together with guardrails and other safety measures to create a secure work environment.
How Tall Should a Toe Board Be?
The height of toe boards isn’t random — there are specific requirements. According to the toe board requirements OSHA standards, toe boards need to be at least 3 ½ inches tall from the walking surface.
This height requirement ensures the toe board can effectively stop tools and materials from rolling or sliding off the edge.
Additionally, the gap between the bottom of the toe board and the walking surface shouldn’t exceed 1/4 inch to prevent smaller objects from slipping through.
The Importance of Toe Boards
When you’re managing a construction site, every safety measure you implement adds another layer of protection for your workers and equipment. Let’s look at the main reasons why these simple barriers are so important.
Worker Protection
Your workers’ safety depends on multiple layers of protection, and toe boards are a key part of that system. They work with guardrails and other safety measures to create a secure work environment.
When you’re working at height, every safety measure counts. The physical barrier they provide helps prevent accidental slips and gives workers more confidence in their footing, which leads to better focus and productivity on the job.
Equipment Safety
Tools and materials aren’t cheap and replacing them costs both time and money. Toe boards help keep your equipment in your hands and not falling on someone down below.
This protection not only saves on replacement costs but also prevents project delays that can occur when essential tools are damaged or lost.
Legal Compliance
Meeting safety standards isn’t optional — it’s a requirement by law. Having proper toe boards installed helps ensure your worksite meets OSHA requirements and helps protect you from potential fines or legal issues.
Regular inspection and maintenance of scaffolding toe boards is also part of compliance, ensuring they remain effective throughout the project.
Risks of Not Having Toe Boards
Getting caught on scaffolding without toe boards can have some consequences. Here are the main concerns you need to consider.
Falling Object Hazards
Without toe boards, there’s nothing to stop tools or materials from falling off elevated surfaces. “Struck-by-falling object” accidents can result in serious injuries, property damage, and significant project delays.
Worker Safety Risks
You probably have workers up on scaffolding, maybe a few stories high, and they’re focused on getting the job done. Without toe boards in place, all it takes is someone accidentally kicking a tool, bucket, or bundle of material for a serious issue to happen.
Frequently Asked Questions
What are the OSHA requirements for toe boards?
OSHA requires toe boards when there’s a risk of objects falling from overhead work areas. They must be at least 3.5 inches high and able to withstand a force of at least 50 pounds.
The gap between the bottom of the toe board and the walking surface shouldn’t be more than 1/4 inch. Regular inspections are required to make sure they remain secure and effective.
What can be used instead of a toe board?
Toe boards are your best bet — but we get it, sometimes they’re not the most practical solution for your setup. You might need to block off the area below your work zone with barriers and caution tape, or maybe throw up some heavy-duty debris netting.
Just keep in mind that whatever you choose needs to be as good as a toe board at keeping tools and materials from falling on someone’s head. Take a good look at your site and think about what could go wrong before you pick an alternative — what works for a quick repair job might not cut it for a month-long project.
How should a toe board be installed?
Toe board scaffolding needs to be securely attached to the platform or structure. Installation should ensure there are no gaps that could allow objects to fall through, and the toe board should be able to withstand the force of kicked or dropped objects. Regular checks should be performed to verify secure attachment and proper positioning.
Can debris netting replace a toe board?
While you can use debris netting as an additional safety measure, it typically can’t replace toe boards entirely. The best approach is often using both — toe boards to prevent items from falling off edges, and netting as an extra layer of protection. This combination provides thorough protection against falling objects of various sizes.
Final Thoughts
Toe boards play a huge role in protecting workers and preventing accidents.
By understanding and following proper toe board requirements, you’re not just checking a box for compliance — you’re actively contributing to a safer work environment for everyone on your construction site.
