How to Choose the Right Scaffolding Dimensions for Your Project
Getting your scaffolding dimensions right isn’t just about following regulations — it’s about keeping your crew safe and your project running smoothly.
Whether you’re planning a small renovation or managing a large construction project, understanding scaffold sizes and requirements will help you carefully decide.
Standard Scaffolding Dimensions

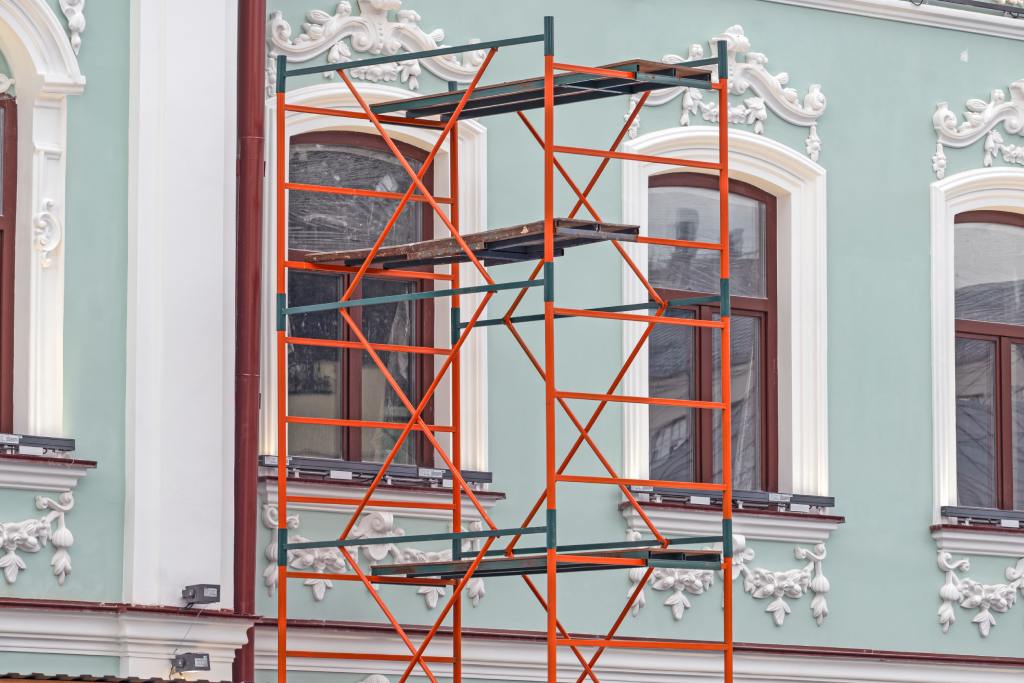

Scaffold standard dimensions vary based on your needs and the type of work you’re doing. Most scaffold frames come in 5′ x 5′ sections, though you’ll find plenty of options ranging from 3′ to 7′ in width. The platforms typically come in lengths of 7′, 8′, or 10′, letting you customize your setup based on the work area you need to cover.
Scaffolding Size Requirements
When you’re planning your scaffold setup, size matters, and OSHA has specific requirements you’ll need to follow. Your scaffold’s height shouldn’t exceed four times its minimum base dimension.
If your base is 5 feet wide, your maximum height shouldn’t go beyond 20 feet without additional support or a wider base.
You’ll also need to consider the width of your work platforms — they should extend at least 18 inches beyond the building face to give workers enough room to maneuver safely. For longer platforms over 10 feet, you might need more support points to prevent sagging.
Keep in mind that modular systems let you add components as needed, which means you can adapt your scaffold’s size as your project requirements change.
Scaffolding Weight Requirements
You might think you just need to account for worker weight, but there’s more to it. OSHA requires scaffolds to support their own weight plus four times the intended load.
To better explain — if you have two workers at 200 pounds each plus 100 pounds of tools, your scaffold needs to support at least 2,000 pounds (400 pounds x 4, plus the scaffold’s weight).
Don’t forget to factor in the weight of stored materials and any equipment you’ll need on the platform.
Think of it like this. Add an extra 25% to your calculated weight capacity for unexpected loads. Remember that different sections of your scaffold might need different weight ratings.
In areas where you’ll store heavy materials, you’ll need higher capacity ratings than sections used mostly for worker access. As always, make sure you also check the manufacturer’s specifications.
Guardrail Height Requirements
Safety rails aren’t optional, they’re a must-have for any scaffold setup. The top rails need to be between 38 and 45 inches above the platform. This range helps prevent falls. Your midrails should sit between 20 and 30 inches above the platform, creating a barrier so your workers won’t slip through.
Also don’t forget about toe boards because they’re just as important as the guardrails. Install them at least 3.5 inches high along the platform edges so your tools and materials don’t fall.
When you work with materials stacked higher than the toe board, you need to install debris nets or screens that reach from the toe board to the top rail. This extra layer of protection keeps both your workers and anyone below the scaffold safe from any falling objects.
Cross Bracing Guidelines
Cross bracing keeps your scaffold stable and can serve as part of your guardrail system. When using cross bracing as a top rail, the crossing point needs to be between 38 and 48 inches above your platform. For midrail duty, it should fall between 20 and 30 inches above the platform level.
Remember that cross bracing isn’t just about meeting height requirements — it’s about creating a strong structure that won’t sway or shift when you use it. Make sure your bracing connects securely at both ends and forms a solid X pattern.
You’ll want to check these connections everyday, as they can loosen over time from vibration and regular use. If you’re using the bracing as part of your guardrail system, double-check that your workers can’t accidentally step through any gaps between the bracing and adjacent rails.
Footing and Stability
It’s important for your scaffold’s foundation to be rock solid. Use base plates and mudsills on soft ground, and make sure they’re sitting on level terrain. Even on seemingly level ground, use leveling jacks so that everything lines up properly. If a scaffold is even just a little but off-level, it can become dangerous as you add height.
Choosing the Right Scaffolding for the Job
Picking the right scaffold dimensions starts with knowing your project needs. Keep these factors in mind:
- Required working height
- Conditions of the ground
- How many workers are using the scaffold
- Tools and materials you use
- Access requirements
- Duration of use
Your scaffold setup should give workers enough room to move safely while carrying their tools and materials. Don’t forget to factor in space for storing materials on the platform — you’ll need extra width or length to keep walking paths clear.
Frequently Asked Questions
What is the standard size for scaffolding?
Most of the time, you’ll find scaffold frames sized at 5 feet by 5 feet and that’s pretty much the industry standard. The platforms that go on top come in a few different lengths, usually 7, 8, or 10 feet.
These sizes aren’t random, they’ve been tested over time and work really well for most jobs, whether you’re doing basic maintenance or full-scale construction. They are this way because they’re wide enough to work on comfortably but not so big that they become unwieldy or unsafe.
What is the 3 to 1 rule in scaffolding?
The 3 to 1 scaffolding rule means that for every 3 feet of height, the base of the scaffold should extend outward 1 foot to help prevent tipping and stay stable. OSHA’s current standard is the 4 to 1 rule, which means if your base is 4 feet wide, you can build up to 16 feet high before needing extra support.
What is the diameter of scaffolding dimensions?
Your standard scaffold tubes come in at 1.90 inches in outside diameter, with walls between 0.145 and 0.160 inches thick. These measurements might shift a bit between manufacturers and whether you’re using steel or aluminum, but they’re pretty consistent across the industry.
Final Thoughts
Getting your scaffold dimensions right takes careful planning, but it’s worth the effort. You’ll want to map everything out before you start — from the base dimensions to the working height you’ll need. Always plan for more platform space than you think you’ll use.
Remember, the time you spend planning your scaffold setup will pay off throughout your project. Your workers will be more efficient, safer, and better equipped to get the job done right.
At the end of the day, proper scaffold dimensions aren’t just about following regulations — they’re about creating a workspace where your team can work effectively and safely.
