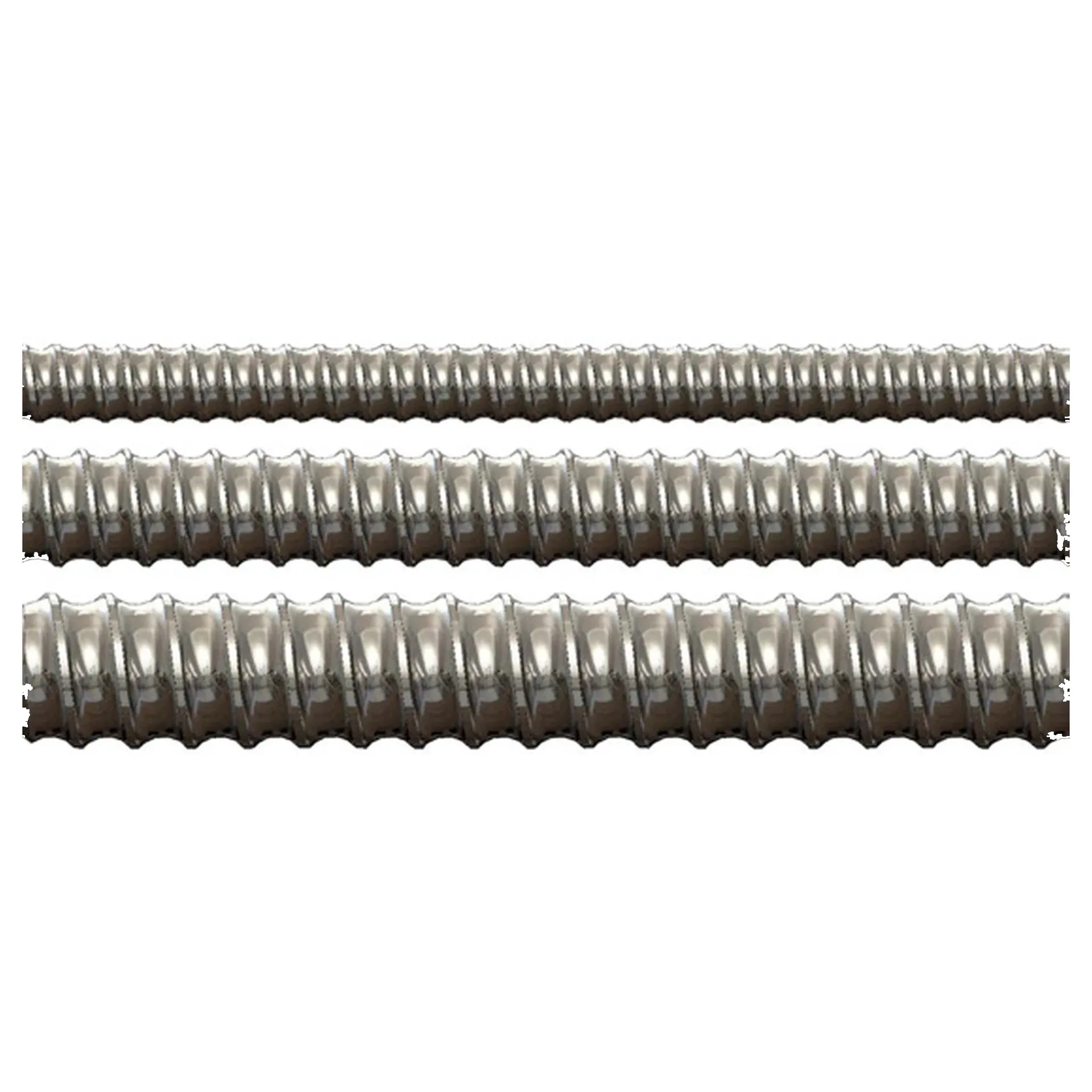

Coil Rod

Part No.	Description	Dia	TPI	L	Safe Working Load Tension	Safe Working Load Shear	Min Coil Penetration
FWCR05012	1/2″ Threaded Coil Rod x 12′	1/2″	6	12′ 3.65 m	9,000 lb 40 kN	6,000 lb 26 kN	2″
FWCR07512	3/4″ Threaded Coil Rod x 12′	3/4″	4.5	12′ 3.65 m	18,000 lb 80 kN	12,000 lb 53 kN	2 1/4″
FWCR10012	1″ Threaded Coil Rod x 12′	1″	3.5	12′ 3.65 m	38,000 lb 169 kN	25,300 lb 112 kN	2 1/2″

Continuously threaded and manufactured from cold rolled high stength steel, Coil Rod can be used in multiple forming applications in combination with coil ties, coil inserts, and coil threaded form hardware, as well as hanging bridge overhang brackets from a beam hanger.

ADDITIONAL INFORMATION

Material: non-weldable high-strength steel
Can be easily cut in the field to required lengths with bolt cutters or a carborundum blade
Safe working load is based on a 2:1 safety factor
