Connecting Hardware

Direct Ply connecting hardware is utilized to connect adjacent panels, fillers, and corners. They may also be utilized to attach various other Direct Ply components.

ADDITIONAL INFORMATION

Standard Wedge Bolts: act as a lock-set for all standard connections
Long Bolts: used in conjunction with a standard wedge bolt to connect steel fillers to adjacent panels/fillers
Adjustable Long Bolts: used when two steel fillers are side-by-side, up to a maximum of 3 inches
Base Tie Bolts: allow a tie to be utilized at an endrail or siderail up against an existing concrete wall or footing
Material: Normalized Steel
Finish: Black

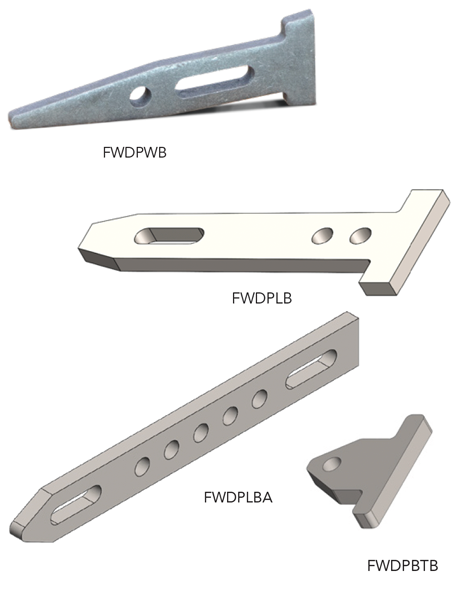

Part No.	Description	Length	Weight (lb / kg)
FWDPWB	Standard Wedge Bolt	3.88″ / 98.43 mm	0.12 lb / 0.06 kg
FWDPLB	Long Bolt	4.30″ / 109.22 mm	0.16 lb / 0.07 kg
FWDPLBA	Adjustable Long Bolt	5.75″ / 146.05 mm	0.17 lb / 0.08 kg
FWDPBTB	Base Tie Bolt	1.06″ / 26.92 mm	0.04 lb / 0.02 kg
