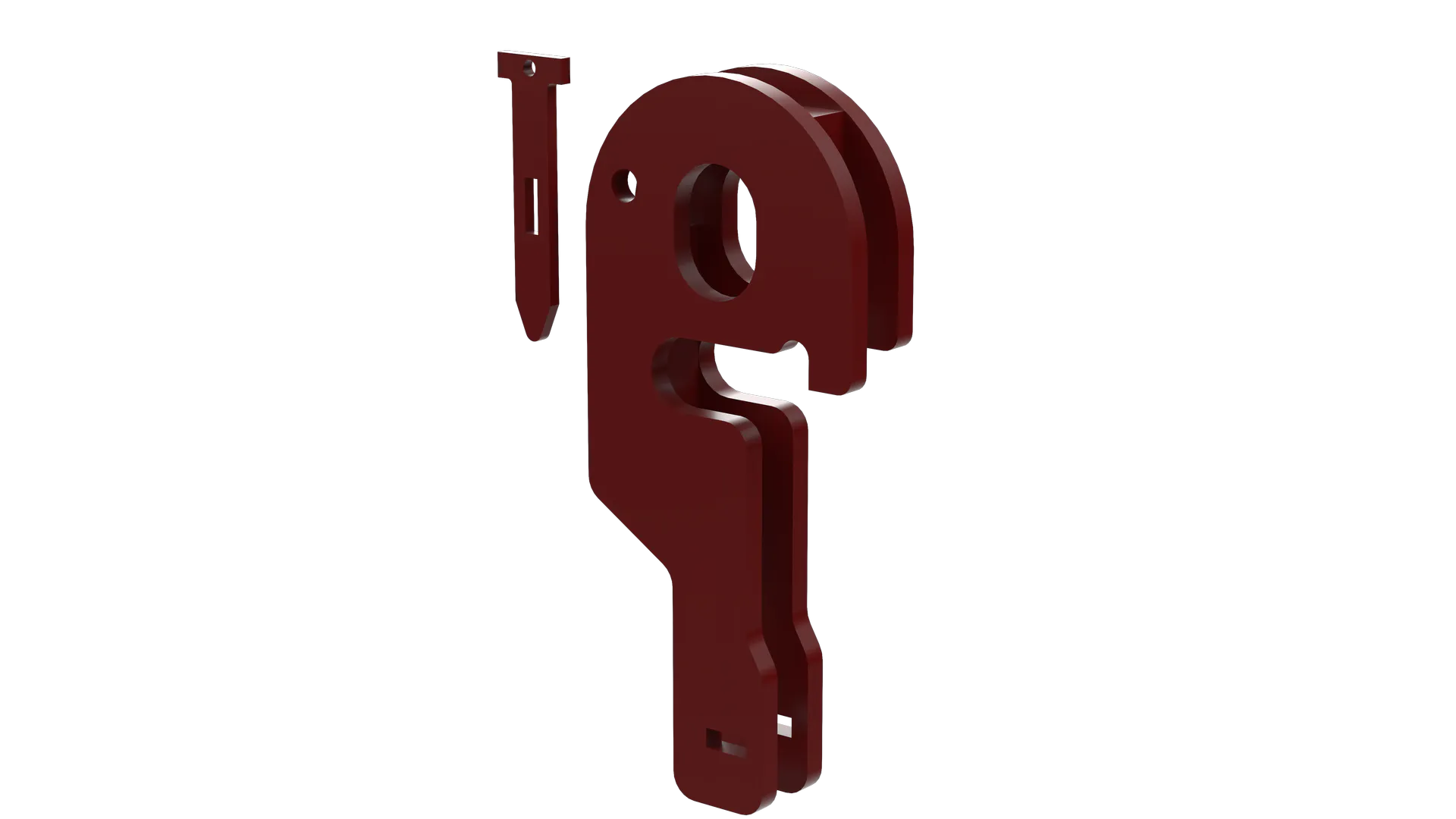

Two or more Direct Ply Double Duty Lift Brackets attach at the side rails of two adjoining panels and are secured with the included special long bolt cabled to the part, along with a Standard Wedge Bolt. Install 16d nail and clinch over after installing Wedge Bolt in special connecting bolt. ADDITIONAL INFORMATION
Material: Steel
Finish: Powder Coated
Capacity: 2,000 lb Safe Working Load at 5:1 Safety Factor, capacity drops to 1,000 lb at 45º
