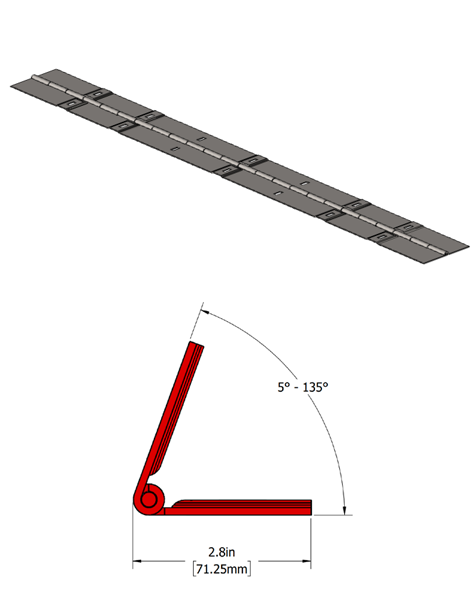

Direct Ply Outside Hinged Corners are used between two forms to form outside corners with angles ranging from 5° minimum to 135° maximum without interference.
ADDITIONAL INFORMATION
| Part No. | Description | Height | Weight (lb / kg) |
|---|---|---|---|
| FWDPSOHC3 | 3’ Outside Hinged Corner | 3’ / 914.4 mm | 7.45 lb / 3.38 kg |
| FWDPSOHC4 | 4’ Outside Hinged Corner | 4’ / 1219.2 mm | 9.92 lb / 4.5 kg |
| FWDPSOHC5 | 5’ Outside Hinged Corner | 5’ / 1524 mm | 12.38 lb / 5.61 kg |
| FWDPSOHC6 | 6’ Outside Hinged Corner | 6’ / 1828.8 mm | 14.85 lb / 6.73 kg |
| FWDPSOHC8 | 8’ Outside Hinged Corner | 8’ / 2438.4 mm | 19.8 lb / 8.98 kg |
