Specifications
| Part No. | Description | Load Capacity (lb / kg) | Total Length (in / mm) | Taper Length (in / mm) | Thread Length (in / mm) | Weight (lb / kg) |
|---|---|---|---|---|---|---|

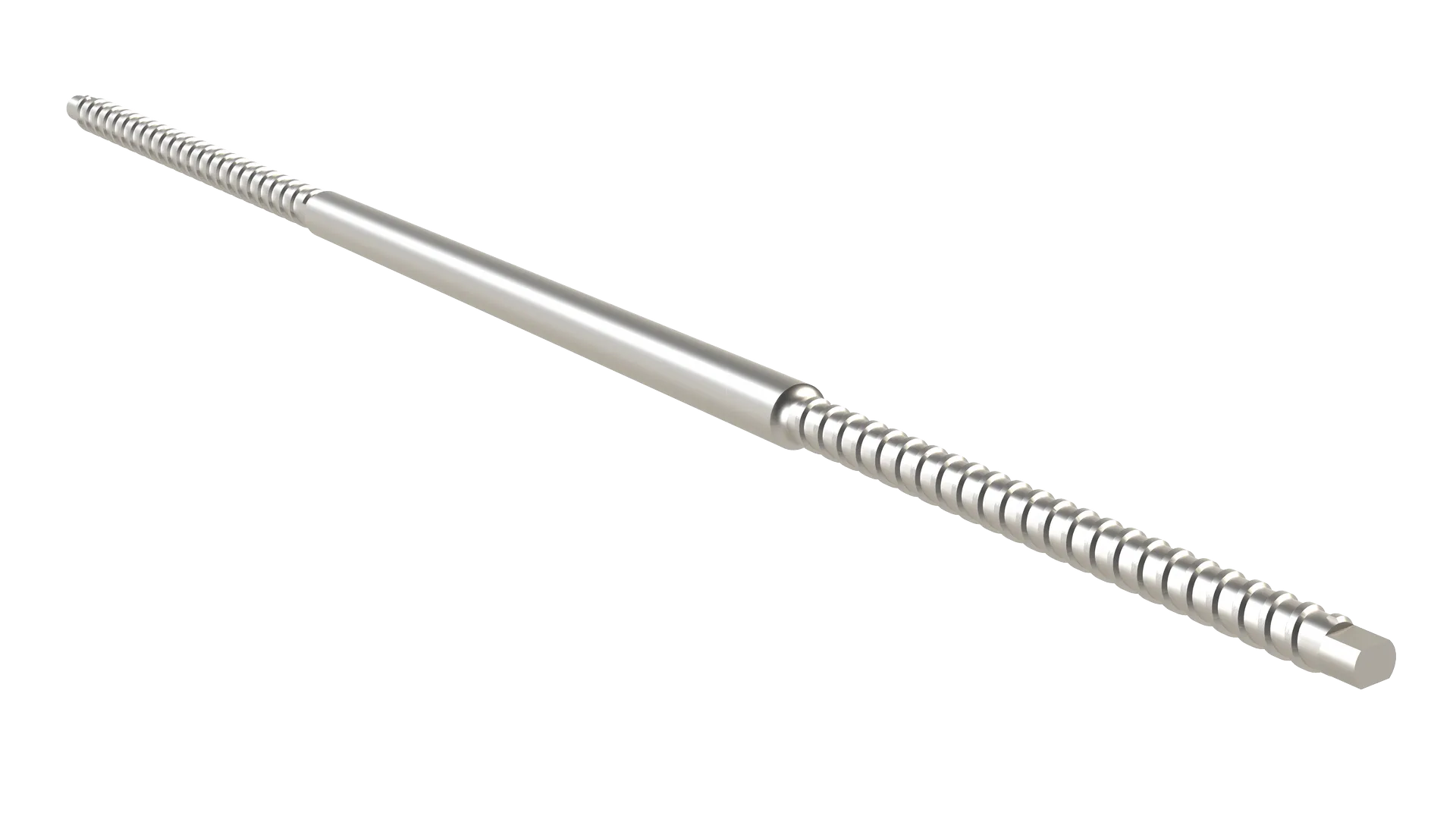

| FWTT32 | 15mm x 32″ Taper Tie | 20,000 / 9072 | 32 / 812.8 | 13 / 330.2 | 9.30 / 236.2 | 3.5 / 1.6 |
| FWTT38 | 15mm x 38″ Taper Tie | 20,000 / 9072 | 38 / 965.2 | 19 / 482.6 | 9.30 / 236.2 | 4.4 / 2.0 |
| FWTT44 | 15mm x 44″ Taper Tie | 20,000 / 9072 | 44 / 1117.6 | 25 / 635.0 | 9.30 / 236.2 | 5.5 / 2.5 |
| FWTT50 | 15mm x 50″ Taper Tie | 20,000 / 9072 | 50 / 1270.0 | 31 / 787.4 | 9.30 / 236.2 | 7.5 / 3.5 |
