Specifications:

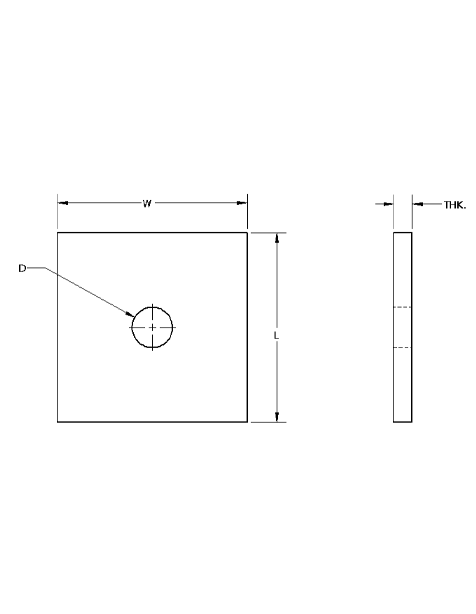

| Part No. | Description | W (in / mm) | L (in / mm) | D (in / mm) | THK. (in / mm) | Load Rating (lb / kN) | Weight (lb / kg) |
|---|---|---|---|---|---|---|---|
| FWWSF05D3X4T25 | FLAT WASHER DIA 1/2", 3" X 4" | 3.0 / 76.2 | 4.0 / 101.6 | 0.5625 / 14.3 | 0.25 / 6.4 | 6,750 / 30.02 | 0.83 / 0.38 |
| FWWSF075D4X5T25 | FLAT WASHER DIA 3/4", 4" X 5" | 4.0 / 101.6 | 5.0 / 127 | 0.8125 / 20.6 | 0.25 / 6.4 | 6,750 / 30.02 | 1.37 / 0.62 |
| FWWSF1D5X5T50 | FLAT WASHER DIA 1", 5" X 5" | 5.0 / 127 | 5.0 / 127 | 1.0625 / 27 | 0.5 / 12.7 | 18,500 / 82.29 | 3.4 / 1.54 |
