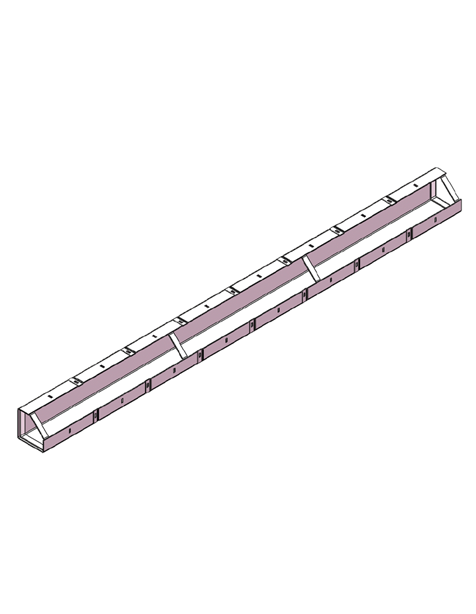

Direct Ply Inside Corners are all-steel right angle corners that lock adjoining panels and/or fillers together. Inside Corners are available in 4” x 4” and 6” x 6” profiles.
ADDITIONAL INFORMATION
| Part No. | Description | Width | Height | Weight (lb) | Weight (kg) |
|---|---|---|---|---|---|
| FWDPSCI0304 | 3’ x 4” Inside Corner | 4” / 101.6 mm | 3’ / 914.4 mm | 19.17 | 8.7 |
| FWDPSCI0404 | 4’ x 4” Inside Corner | 4” / 101.6 mm | 4’ / 1219.2 mm | 25.04 | 11.36 |
| FWDPSCI0504 | 5’ x 4” Inside Corner | 4” / 101.6 mm | 5’ / 1524 mm | 31.19 | 14.15 |
| FWDPSCI0604 | 6’ x 4” Inside Corner | 4” / 101.6 mm | 6’ / 1828.8 mm | 37.06 | 16.81 |
| FWDPSCI0804 | 8’ x 4” Inside Corner | 4” / 101.6 mm | 8’ / 2438.4 mm | 48.79 | 22.14 |
| FWDPSCI0206 | 2’ x 6” Inside Corner | 6” / 152.4 mm | 2’ / 609.6 mm | 18.13 | 8.22 |
| FWDPSCI0306 | 3’ x 6” Inside Corner | 6” / 152.4 mm | 3’ / 914.4 mm | 25.92 | 11.76 |
| FWDPSCI0406 | 4’ x 6” Inside Corner | 6” / 152.4 mm | 4’ / 1219.2 mm | 33.71 | 15.30 |
| FWDPSCI0506 | 5’ x 6” Inside Corner | 6” / 152.4 mm | 5’ / 1524 mm | 41.96 | 19.04 |
| FWDPSCI0606 | 6’ x 6” Inside Corner | 6” / 152.4 mm | 6’ / 1828.8 mm | 49.75 | 22.57 |
| FWDPSCI0806 | 8’ x 6” Inside Corner | 6” / 152.4 mm | 8’ / 2438.4 mm | 65.34 | 29.65 |
