Name: High Load Shoring Frames - Direct Scaffold Supply | DSS Scaffolding, Formwork, Shoring
SKU: SHFxWxDDxP
Availability: InStock

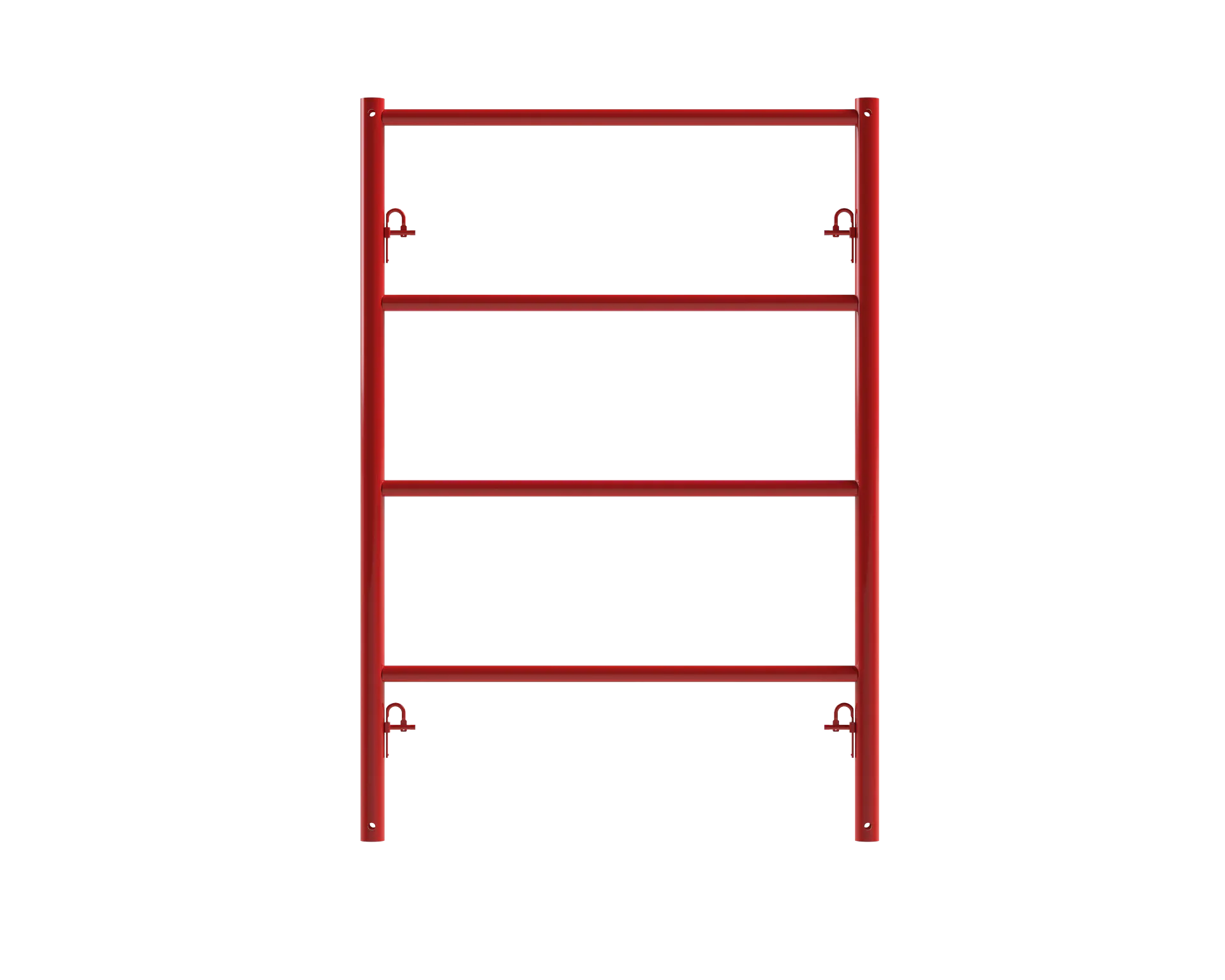

High Load Shoring Frames

Part No.	Description	Width W in [mm]	Height H in [mm]	Lock Spacing L in [mm]	Weight lb [Kg]
SHF2W2HD12	2’ x 2’ Steel Shoring Frame	24.0 [609.6]	24.0 [609.6]	12.0 [304.8]	21.8 [9.89]
SHF2W3HD24	2’ x 3’ Steel Shoring Frame	24.0 [609.6]	36.0 [914.4]	24.0 [609.6]	29.1 [13.19]
SHF2W4HD36	2’ x 4’ Steel Shoring Frame	24.0 [609.6]	48.0 [1,219.2]	36.0 [914.4]	39.2 [17.76]
SHF2W5HD48	2’ x 5’ Steel Shoring Frame	24.0 [609.6]	60.0 [1,524.0]	48.0 [1,219.2]	46.4 [21.06]
SHF2W6HD48	2’ x 6’ Steel Shoring Frame	24.0 [609.6]	72.0 [1,828.8]	48.0 [1,219.2]	56.5 [25.63]
SHF4W2HD12	4’ x 2’ Steel Shoring Frame	48.0 [1,219.2]	24.0 [609.6]	12.0 [304.8]	28.0 [12.70]
SHF4W3HD24	4’ x 3’ Steel Shoring Frame	48.0 [1,219.2]	36.0 [914.4]	24.0 [609.6]	35.3 [16.00]
SHF4W4HD36	4’ x 4’ Steel Shoring Frame	48.0 [1,219.2]	48.0 [1,219.2]	36.0 [914.4]	48.4 [21.96]
SHF4W5HD48	4’ x 5’ Steel Shoring Frame	48.0 [1,219.2]	60.0 [1,524.0]	48.0 [1,219.2]	55.7 [25.26]
SHF4W6HD48	4’ x 6’ Steel Shoring Frame	48.0 [1,219.2]	72.0 [1,828.8]	48.0 [1,219.2]	68.9 [31.24]
