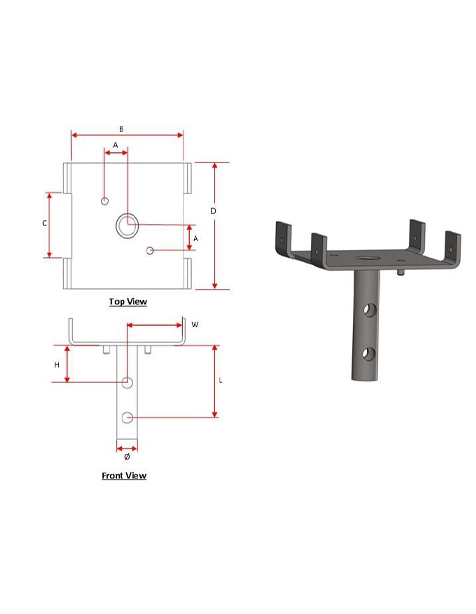

| Part No. | Description | A [mm] |
B [mm] |
C [mm] |
D [mm] |
Ø [mm] |
W [mm] |
L [mm] |
H [mm] |
Weight lbs [kg] |
|---|---|---|---|---|---|---|---|---|---|---|
| SHPSHDUH8 | Two-Way U-Head | 1.57 [40.0] |
7.88 [200.2] |
4.13 [104.9] |
8.00 [203.2] |
1.55 [39.3] |
4.19 [106.4] |
5.50 [139.7] |
2.84 [72.1] |
6.971 [3.162] |
